BHM8
Rated load | t | 1/2/2.5/3/5/10/15/20/25/30 |
Accuracy | C3 | |
Maximum number of load cell verification intervals | nmax | 3000 |
Minimum load cell verification interval | Vmin | Emax/10000 |
Composition Error | (%FS) | ≤ ±0.020 |
Creep | (%FS/30min) | ≤ ±0.016 |
TC Span | (%FS/10°C) | ≤ ±0.011 |
TCO | (%FS/10T) | ≤ ±0.015 |
Sensitivity | (mV/V) | 2.0 ±0.002 |
Input Resistance | (Ω) | 380±5.0 |
Output Resistance | (Ω) | 351 ±2.0 |
Insulation Resistance | (MΩ) | ≥ 5000(100VDC) |
Zero balance | (%FS) | ≤ ±1.0 |
Temperature compensation range | (°C) | -10 ~ +40 |
Service Temp Range | (°C) | -35 ~ +65 |
Recommended excitation voltage | (V) | 5 ~ 12(DC) |
Maximum excitation | (V) | 18(DC) |
Safe Load Limit | (%FS) | 150 |
Breaking Load Limit | (%FS) | 300 |
Protection Class | IP 68 |

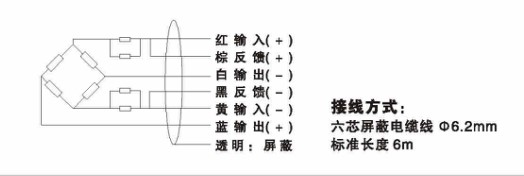

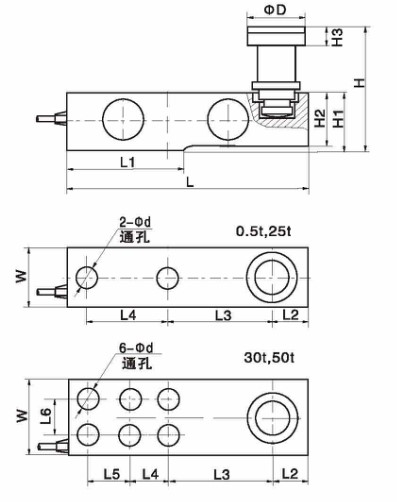

boundary dimension mm（inch）
H | H1 | H2 | H3 | OD | Od | W | L | L1 | L2 | L3 | L4 | L5 | L6 | |
1-2t | 57.9 (2.28) | 43 (1,69) | 37 (1.47) | 5 (0.2) | 35 (1.38) | 13 0.51) | 37 (1.47) | 203 (7.99) | 95 (3.74) | 22 (0.87) | 98 (3.86) | 64 (2.52) | / | / |
2.5t | 57.9 12.28) | 43 (1.69) | 37 (1.47) | 5 (0.2) | 35 (1,38) | 15 (0.59) | 37 (1.47) | 203 (7.99) | 95 (3.74) | 22 (0.87) | 98 (3.86) | 64 (2.52) | / | / |
3t | 62.9 (2.48) | 43 (1.69) | 37 (1.47) | 5 (0.2) | 35 (1.38) | 15 (0.59) | 37 (1.47) | 203 (7.99) | 95 (3.74) | 22 (0.87) | 98 (3.86) | 64 (2.52) | / | / |
5t | 78.7 (3.1) | 52 (2.05) | 48 (1.89) | 8 (0.31) | 42 (1.65) | 21 (0.83) | 48 (1,89) | 235 (9.25) | 110 (4.33) | 22 (0.87) | 124 (4.88) | 66 (2.6) | / | / |
10t,15t | 127.7 (5.03) | 67 (2.64) | 60 (2.36) | 12 (0.47) | 57 (2.24) | 28 (1.10) | 60 (2.36) | 279 (10.98) | 133 (5.24) | 32 (1.26) | 140 15.51) | 82 (3.32) | / | / |
20t,25t | 143.5 (5.65) | 82.5 (3.25) | 70 (2.76) | 12 (0.47) | 70 (2.76) | 34 (1.34) | 70 (2,76) | 318 (12.52 | 153 (6.02) | 38 (1.5) | 159 (6.26) | 89 (3.5) | / | / |
30t | 174( 6.85) | 115 (4.53) | 90 (3.54) | 18 (0.71) | (276 | 26 (1,02) | 96 (3.78) | 374 (14.72) | 189 (7.44) | 44.5 (1..75) | 181 17.13) | 76 (2.99) | 51 12.01) | 46 (1.81) |
