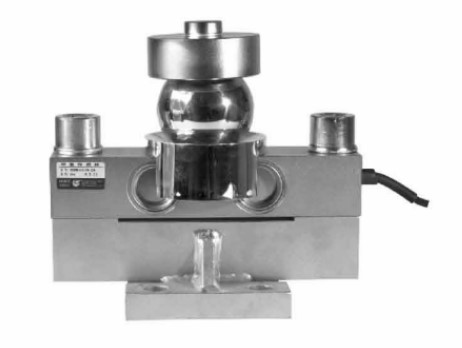

BHM9B
BHM9B

Rated load

t

10/20/25/30/40/40tLE/50

Accuracy


C3

Maximum number of load cell verification intervals

nmax

3000

Minimum load cell verification interval

Vmin

Emax/7500

Composition Error

(%FS)

≤ ±0.020

Creep

(%FS/30min)

≤ ±0.02

TC Span

(%FS/10°C )

≤ ±0.02

TCO

(%FS/10°C )

≤ ±0.02

Sensitivity

(mV/V)

2.0 ±0.002

Input Resistance

(Ω)

703±3.0

Output Resistance

(Ω)

750±5.0

Insulation Resistance

(MΩ)

≥ 5000(50VDC)

Zero balance

(%FS)

±1.0

Temperature compensation range

(°C)

-10 〜+40

Service Temp Range

(°C)

-35 ~ +65

Recommended excitation voltage

(V)

5 ~ 12(DC)

Maximum excitation

(V)

18(DC)

Safe Load Limit

(%FS)

150

Breaking Load Limit

(%FS)

300

Protection Class


IP 68

附件: BHM9B 点击下载
